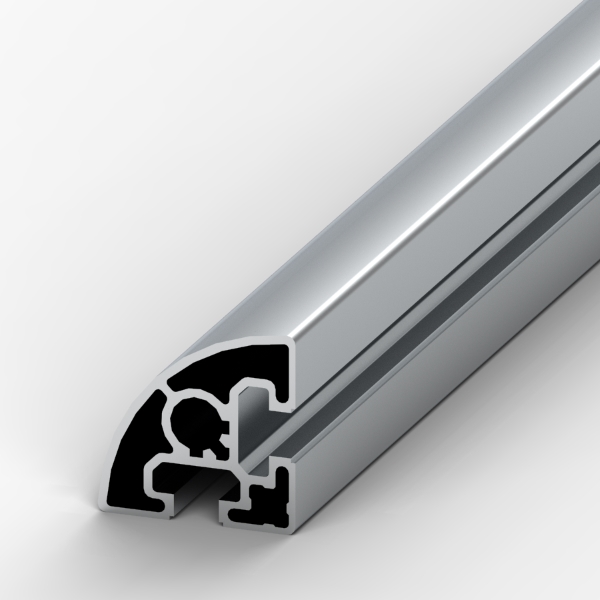

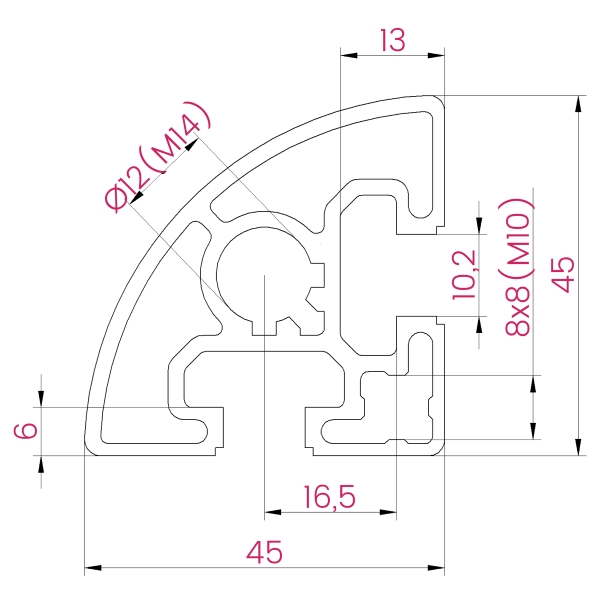

45×45 R90 2 slots profile

The 45 profile group, with 10,2 mm slots, is suggested for the construction of heavyweight assemblies. Examples are heavier machine structure frames and workshop partitions, among others.

REF: AST045045R9002 Categories: ,

Description

Code
Referência		 Mass
(kg/m)
Massa		 Moment of inertia
Ix (cm4)
Momento de inércia		 Moment of inertia
Iy (cm4)
Momento de inércia		 Moment of resistance
Wx (cm3)
Momento resistente		 Moment of resistance
Wy (cm3)
Momento resistente
45×45 R90 2 slots
45×45 R90 2 rasgos		 AST045045R9002 1,5 10,5 6,4 3,5 2,4
