Home / Products Shop / PROFILES / Profile 40 / 40×120 8 slots profile
AST04012008
AST04012008 1

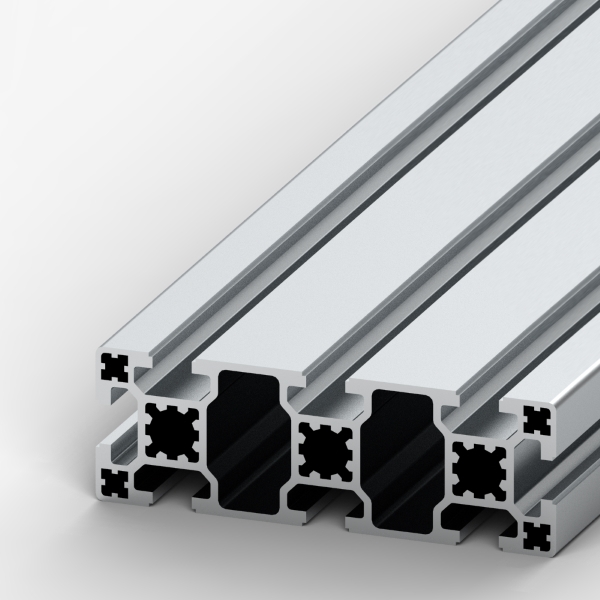

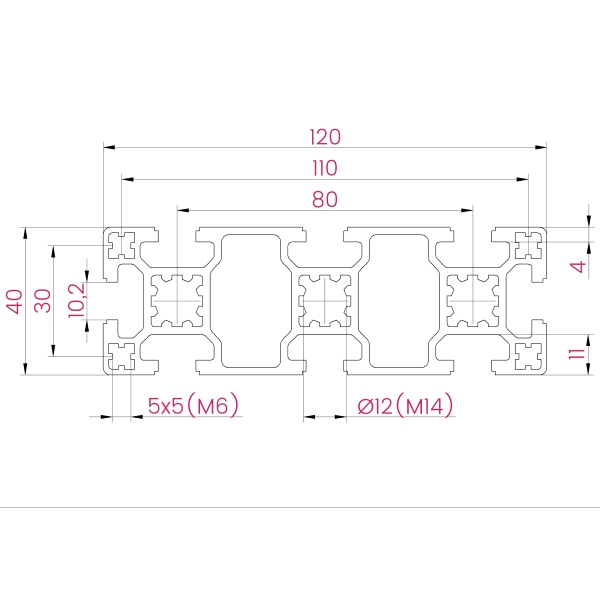

40×120 8 slots profile

The 40 profile group, with 10,2 mm slots, is suggested for the construction of medium to heavyweight assemblies. Examples are heavier machine structure frames, trolleys, workstations, partitions and display frames, among others.

REF: AST04012008 Categories: ,

Description

Code
Referência		 Mass
(kg/m)
Massa		 Moment of inertia
Ix (cm4)
Momento de inércia		 Moment of inertia
Iy (cm4)
Momento de inércia		 Moment of resistance
Wx (cm3)
Momento resistente		 Moment of resistance
Wy (cm3)
Momento resistente
40×120 8 slots
40×120 8 rasgos		 AST04012008 3,8 24,1 194,8 12,1 32,5
Download pdf
Download zip
