Home / Products Shop / PROFILES / Profile 40 / 40×160 10 slots heavy profile
AST04016010H
AST04016010H 1

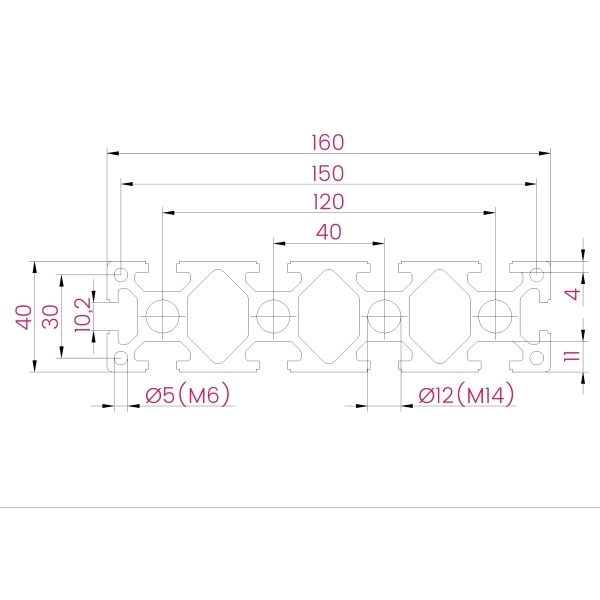

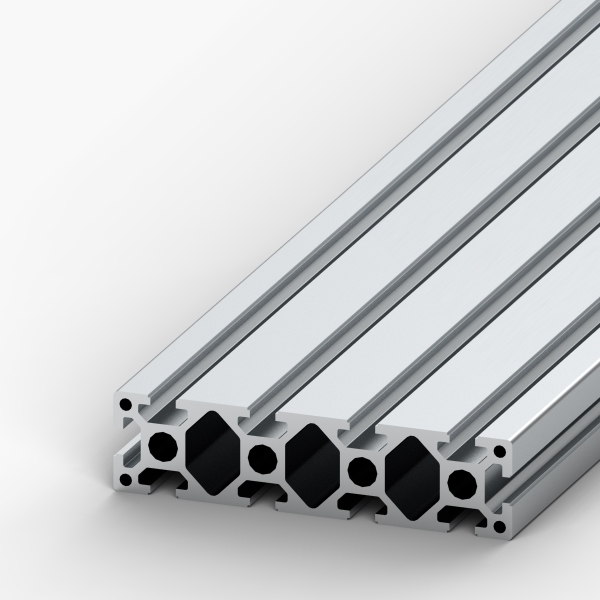

40×160 10 slots heavy profile

The 40 profile group, with 10,2 mm slots, is suggested for the construction of medium to heavyweight assemblies. Examples are heavier machine structure frames, trolleys, workstations, partitions and display frames, among others.

REF: AST04016010H Categories: ,

Description

Code
Referência		 Mass
(kg/m)
Massa		 Moment of inertia
Ix (cm4)
Momento de inércia		 Moment of inertia
Iy (cm4)
Momento de inércia		 Moment of resistance
Wx (cm3)
Momento resistente		 Moment of resistance
Wy (cm3)
Momento resistente
40×160 10 slots heavy
40×160 10 rasgos reforçado		 AST04016010H 6,8 43,7 582,2 21,8 72,8
Download pdf
Download zip
