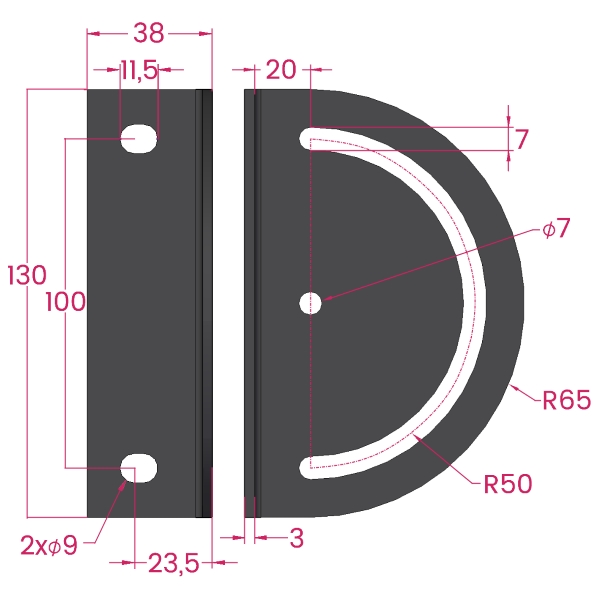

Swivel angle for slot 10

The angle adjuster allows you to adjust the slope of any structure.
Material: oxidized steel to black.

REF: HSA10 Categories: Special Applications, Swivel angle

Description

	Code Referência	Mass (g) Massa
Swivel angle for slot 10 Regulador angular rasgo 10	HSA10	288

HSA 10 (40/45x40/45)	1x M6x12 adjustable handle 1x ISO 4762 M6x16 2x ISO 4762 M8x16 2x ISO 7089 M6 washer 2x ISO 7089 M8 washer 2X slot 10 M6 nut 2X slot 10 M8 nut
HSA 10 (40/45x30)	1x M6x12 adjustable handle 1x ISO 4762 M6x12 2x ISO 4762 M8x16 2x ISO 7089 M6 washer 2x ISO 7089 M8 washer 2X slot 8 M6 nut 2X slot 10 M8 nut
