Home / Products Shop / PROFILES / Profile 40 / 40×40 4 slots light profile
AST04004004L
AST04004004L 1

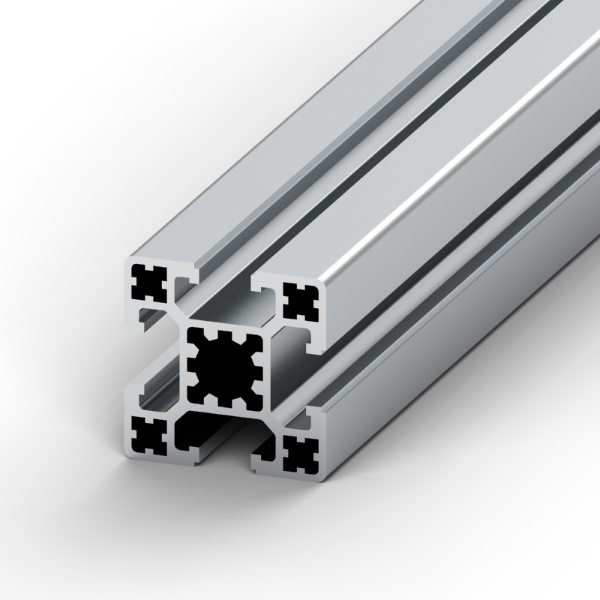

40×40 4 slots light profile

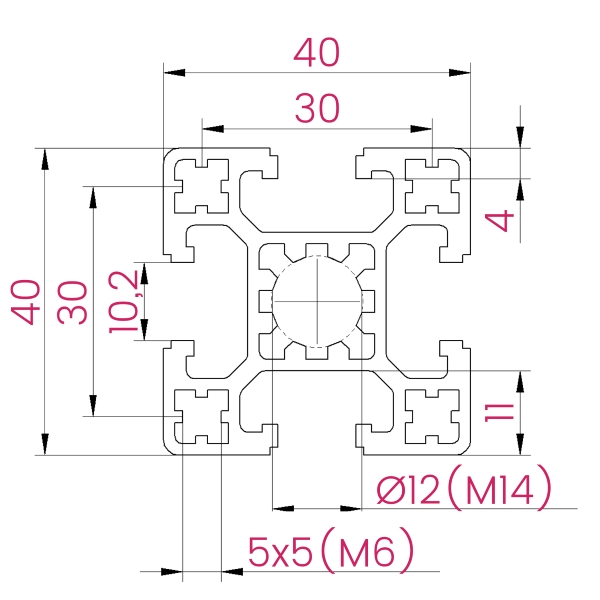

The 40 profile group, with 10,2 mm slots, is suggested for the construction of medium to heavyweight assemblies. Examples are heavier machine structure frames, trolleys, workstations, partitions and display frames, among others.

REF: AST04004004L Categories: ,

Description

Code
Referência		 Mass
(kg/m)
Massa		 Moment of inertia
Ix (cm4)
Momento de inércia		 Moment of inertia
Iy (cm4)
Momento de inércia		 Moment of resistance
Wx (cm3)
Momento resistente		 Moment of resistance
Wy (cm3)
Momento resistente
40×40 4 slots light
40×40 4 rasgos ligeiro		 AST04004004L 1,5 8,6 8,6 4,3 4,3
Download pdf
Download zip
