Home / Products Shop / PROFILES / Profile 40 / 40×80 6 slots super light profile
AST04008006SL
AST04008006SL 1

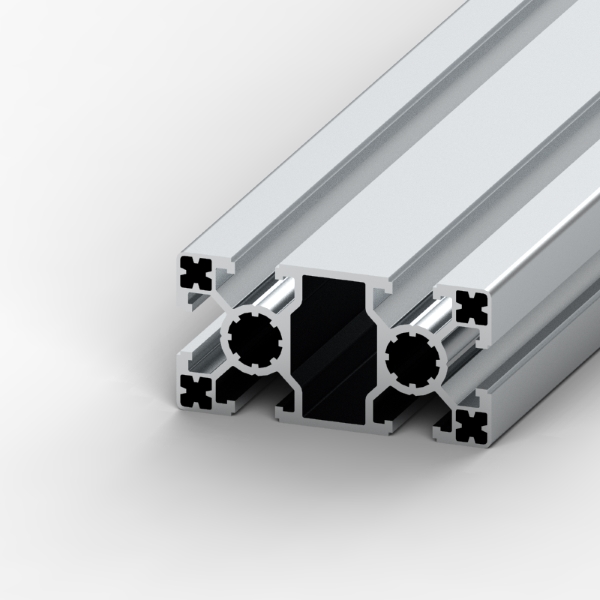

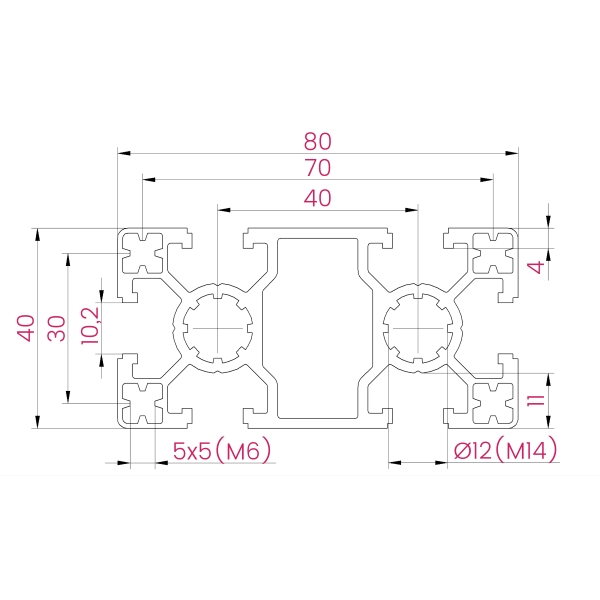

40×80 6 slots super light profile

The 40 profile group, with 10,2 mm slots, is suggested for the construction of medium to heavyweight assemblies. Examples are heavier machine structure frames, trolleys, workstations, partitions and display frames, among others.

REF: AST04008006SL Categories: ,

Description

Code
Referência		 Mass
(kg/m)
Massa		 Moment of inertia
Ix (cm4)
Momento de inércia		 Moment of inertia
Iy (cm4)
Momento de inércia		 Moment of resistance
Wx (cm3)
Momento resistente		 Moment of resistance
Wy (cm3)
Momento resistente
40×80 6 slots super light
40×80 6 rasgos super ligeiro		 AST04008006SL 2,3 14,3 52,0 7,2 13,0
Download pdf
Download zip
